MILWAUKEE® Expands the M18™ Lighting Lineup

Introducing the new M18^™ service area light with USB Charging, M18^™ pivoting area Light, and M18^™ multi-directional task Light, which deliver users with versatility and portability in a compact size. Designed with the ability to adapt to any job site, these new M18^™ lighting solutions are made to tackle the toughest job site conditions and applications, while delivering the ultimate versatility in application.

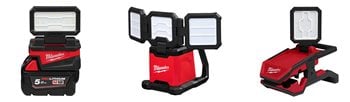

Versatility and portability in a compact size across the new M18™ lighting range.

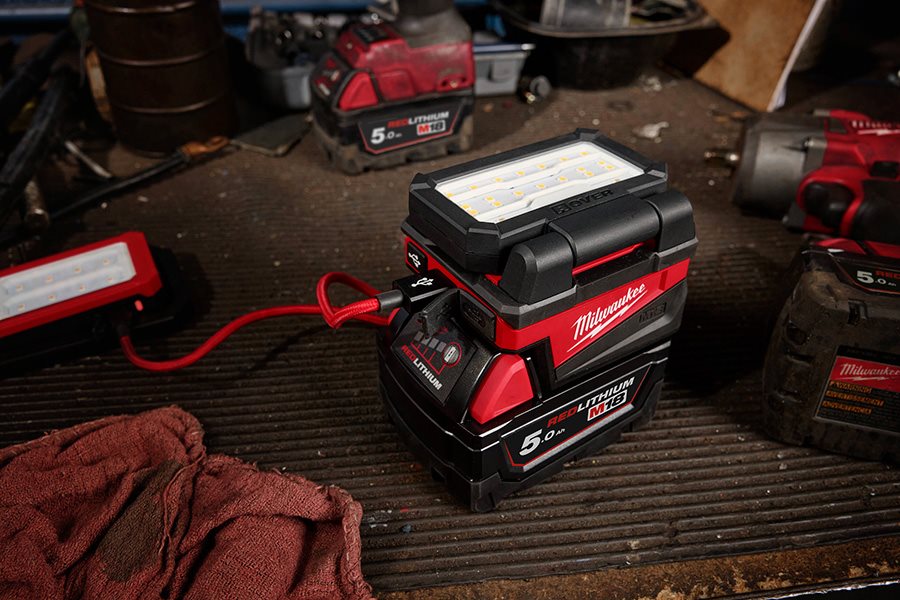

M18^™ Service Area Light

Delivering professionals portable convenience combined with high output lighting, the M18^™ Service Area Light delivers 1,000 lumens of TRUEVIEW^™* High Definition Lighting with 12 hours of run time on High Mode with an M18^™ 5.0 Ah battery pack. Designed with 4 different output modes and 300° of horizontal and 180° of vertical light head mobility, this solution provides the ease to tailor the lights output and position for maximum mobility. With two ports included, 12 W USB-A and 27W USB-C, users can deliver power to small external devices when needed. Featuring an integrated metal rafter hook that can be extended, professionals can hang the light from carts, lumber, or other jobsite materials when worksurface space is limited.

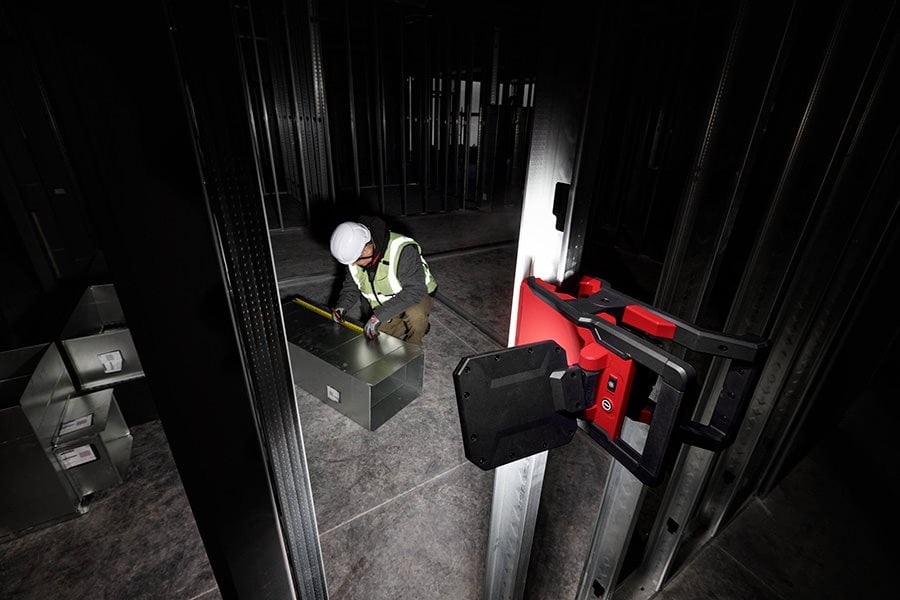

M18^™ Pivoting Area Light

Driving maximum versatility and mounting capabilities in any job site condition, the M18^™ Pivoting Area Light is optimised to provide overhead area lighting regardless of the job site conditions. Adapting to any professional job site, this light features a strong 7.5 cm multi-material clamp designed for 2.5 – 7.5 cm OD pipes, 2 bi-material, and steel studs while also featuring strong magnets at the base for quick attachment for metal surface mounting. With 355° of horizontal rotation and 170° of vertical rotation for complete light head adjustability, the light delivers 2,000 lumens of TRUEVIEW^™ High-Definition Lighting and offers 6 hours of run time on High Mode with an M18™ 5.0 Ah battery pack.

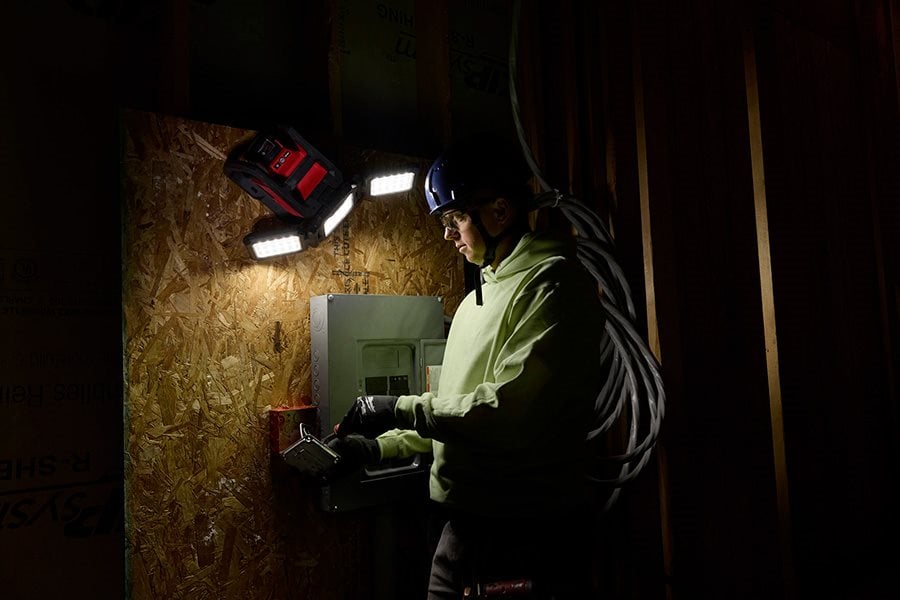

M18^™ Multi-directional Task Light

Delivering a high-performing 4,500 lumens of flood and area light and the most compact portability in its class, the M18^™ Multi-directional Task Light provides professionals the performance required on the job site. This solution has three folding light panels that provide optimal lighting coverage, offering nine total brightness modes and individual light head power options for the capability to manage output and run time. The M18^™ Multi-directional Task Light delivers 4,500 lumens of TRUEVIEW^™ High-Definition Lighting with 3 hours of run time on High Mode with an M18^™ 5.0 Ah battery pack and up to 30 hours of run time on Low Mode. Equipped with an AC port, users can experience unlimited run time capability. With a versatile base featuring a hook, magnet, and keyholes, professionals can mount this light overhead in any job site environment with ease. Featuring 270° horizontal rotation and 270° vertical articulation, as well as integrated handles for easy carrying, users are provided adaptability in their job site lighting solutions.

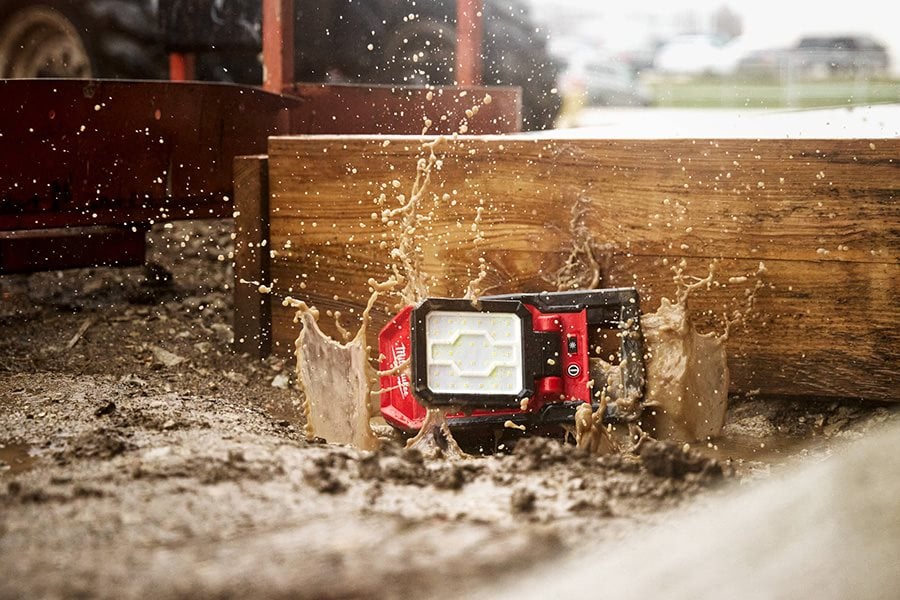

Designed with the job site in mind, all three of the new M18^™ lighting solutions are IP54 rated and can withstand up to a 2 m drop. MILWAUKEE^® is committed to improving productivity by providing performance-driven and trade-focused solutions so users can perform an entire day's work on one battery system. These new M18^™ lighting solutions are fully compatible with the entire M18^™ line, now offering more than 290 solutions.

*TRUEVIEW^™ Technology utilises the most advanced LED technology and optical designs to deliver a consistent beam, optimised colour temperature, and true representation of colours and detail leading to a more productive work area.

Specifications

M18^™ Service Area Light

M18 ALIS-0

• Lumen output
  • High: 1,000 lumens
  • Medium: 500 lumens
  • Low: 250 Lumens
  • Ultra low: 85 lumens
• Run time
  • High: 12 hours
  • Medium: 22 hours
  • Low: 42 hours
• Ultra low: 110 hours
• Ingress rating: IP20
• 2 m drop rating
• Weight with battery pack (EPTA): 1.2 kg (M18 B5)

Kit Includes: (1) M18^™ Service Area Light

M18^™ Pivoting Area Light

M18 PAL-0

• Lumen output
  • High: 2,000 lumens
  • Medium: 1,000 lumens
  • Low: 500 lumens
• Run time
  • High: 6 hours
  • Medium: 12 hours
  • Low: 24 hours
• Ingress rating:  IP20
• 2 m drop rating
• Weight with battery pack (EPTA): 1.2 kg (M18 B5)

Kit Includes: (1) M18^™ Pivoting Area Light

M18^™ Multi-directional Task Light

M18 MDTL-0

• Lumen output
  • High: Up to 4,500 lumens
• Run time
  • Up to 30 hours
• Ingress rating:  IP20
• 2 m drop rating
• Weight with battery pack (EPTA): 3.75 kg (M18 B5)

Kit Includes: (1) M18^™ Multi-directional Task Light
