15 August 2024

MILWAUKEE® Revolutionises Ceiling Drilling

Introducing a new-to-world solution, MILWUAKEE® delivers the M18 FUEL™* 16 mm SDS-PLUS Hammer with Integrated Dust Extractor optimised for ceiling drilling.

Delivering the lightest weight and minimising fatigue during use, the 2-in-1 design ensures easy dust compliance and enables the fastest drilling for small ceiling anchors.

The new ergonomic side handle now located near the rear handle, allows for better body posture during application. For improved versatility this handle can be inserted on the left or the right of the tool and collapsed for easy storage. Equipped with an Anti-Vibration system (AVS), this rotary hammer minimises vibration for maximum comfort.

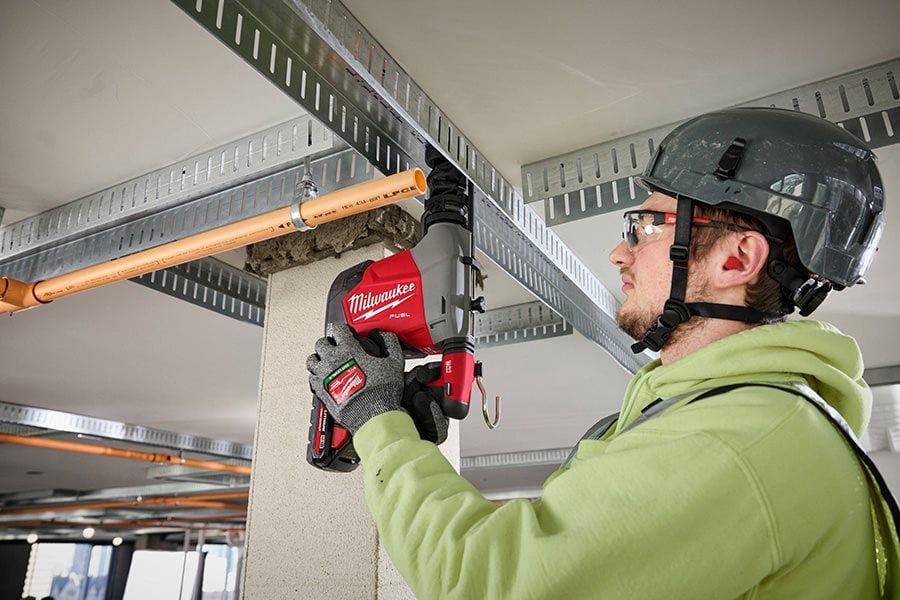

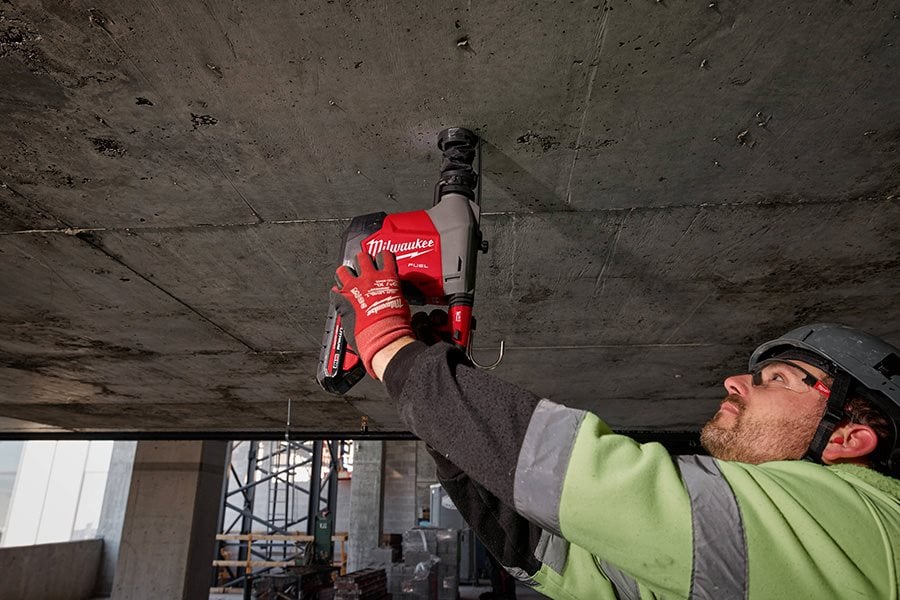

Providing superior ergonomics, the SDS-Plus Hammer is designed to enhance productivity and comfort during repetitive overhead drilling applications. The built in dust extractor creates a compact, lightweight tool with optimised balance for less fatigue while offering simplified dust compliance.

Our 2-in-1 design delivers improved ergonomics for overhead work compared to traditional rotary hammer and dust extractor attachments.



Driving best-in-class performance, the POWERSTATE Brushless motor delivers more than 60 holes per charge on a M18REDLITHIUM HIGH OUTPUT 3.0 Ah battery. AUTOSTOPKickback control offers enhanced safety for the operator by preventing over-rotation in a bind-up. With ONE-KEY**, users can choose between default and low sensitivity settings for AUTOSTOP feature, in addition to tool tracking and management.

The integrated dust extractor features AUTOPULSE Filter Cleaning Mechanism that automatically cleans the dust extractor after each use and is designed with HEPA filters.

MILWAUKEE® is committed to improving productivity by providing performance-driven and trade-focused solutions so users can perform an entire day's work on one battery system. The M18 FUEL 16 mm SDS-PLUS Hammer with Integrated Dust Extraction is fully compatible with the entire M18 line, now offering more than 290 solutions.



*M18 FUEL is engineered for the most demanding tradesmen in the world. Delivering unrivalled performance, all M18 FUEL products feature three MILWAUKEE®-exclusive innovations—The POWERSTATE Brushless Motor, REDLITHIUM Battery Pack and REDLINK PLUS Intelligence Hardware and Software—that deliver unmatched power, run-time, and durability on the jobsite. Simply put, M18 FUEL tools are the most powerful 18V cordless tools in their class.

**ONE-KEY is the first digital platform for tools and equipment. By integrating industry-leading tool electronics with a custom-built cloud-based program, ONE-KEYprovides a new level of control and access to information that revolutionises the way work gets done. The ability to customise, track and manage through ONE-KEY fundamentally changes the way users interact with their tools.



Specifications

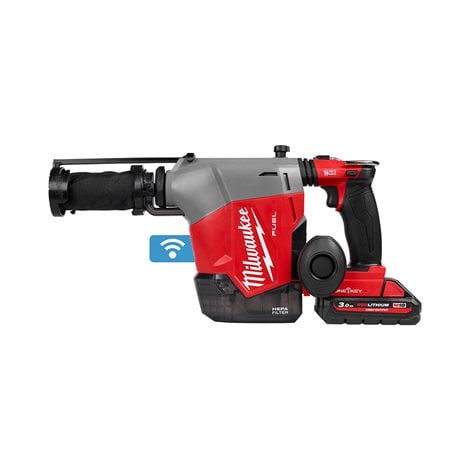

M18 FUEL16 mm SDS-PLUS Hammer with Integrated Dust Extractor

M18 FHAFOH16-302X

  • Battery Type: Lithium-ion
  • Battery System: M18 FUEL
  • Blow Energy (EPTA): 2.3 J
  • Max Drill Bit Length: 165 mm
  • Max Drilling Concrete: 16 mm
  • Max Drilling Depth: 100 mm
  • Max Percussion Rate: 4740 bpm
  • No Load Speed: 0 – 1310 rpm
  • Optimised Drilling Capacity in Concrete: 5.5 – 13 mm
  • Weight with Battery Pack (EPTA): 3.3 kg (M18 HB3)

Kit Includes: (1) M18 FHAFOH16, (2) M18 HB3 Battery Packs, (1) M12-18 FC Charger, (1) HD Box



Accessories

SDS-Plus MX4 5.5 x 115 - 1 pc (4932352009)

SDS-Plus MX4 5.5 x 165 - 1 pc (4932352010)
