01 August 2024

MILWAUKEE® Expands their Rotary Laser Range with a New Exterior Rotary Laser

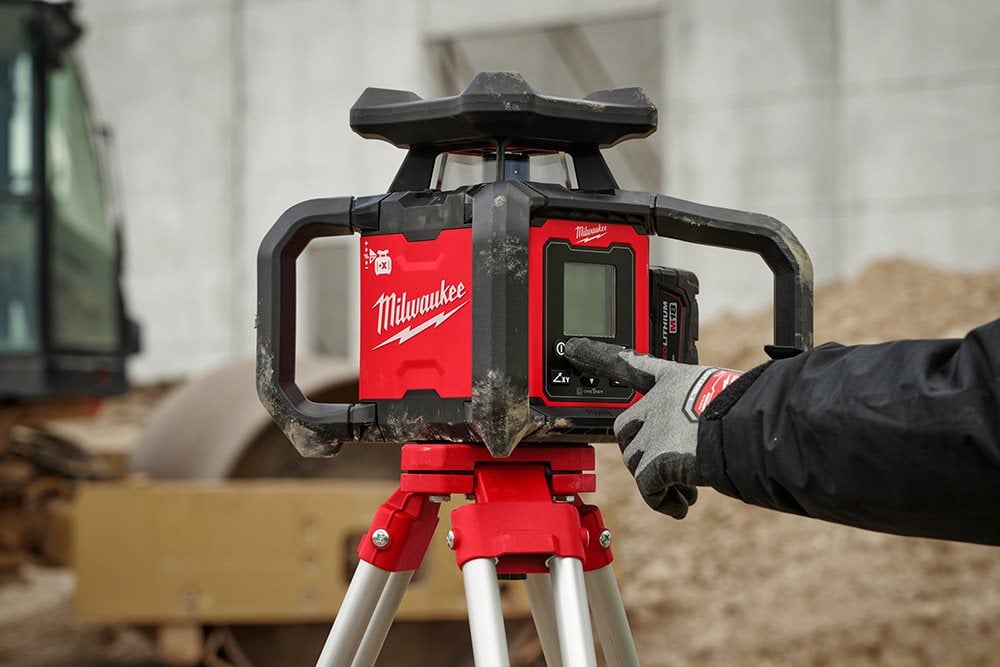

MILWAUKEE® continues to drive innovation within the layout category with the launch of the new M18™ 1200 m Horizontal Vertical Auto Dual Grade Rotary Laser with ONE-KEY™

The M18^™ 1200 m Horizontal Vertical Auto Dual Grade Rotary Laser with ONE-KEY^™ is the ideal solution for levelling, aligning, and squaring applications.

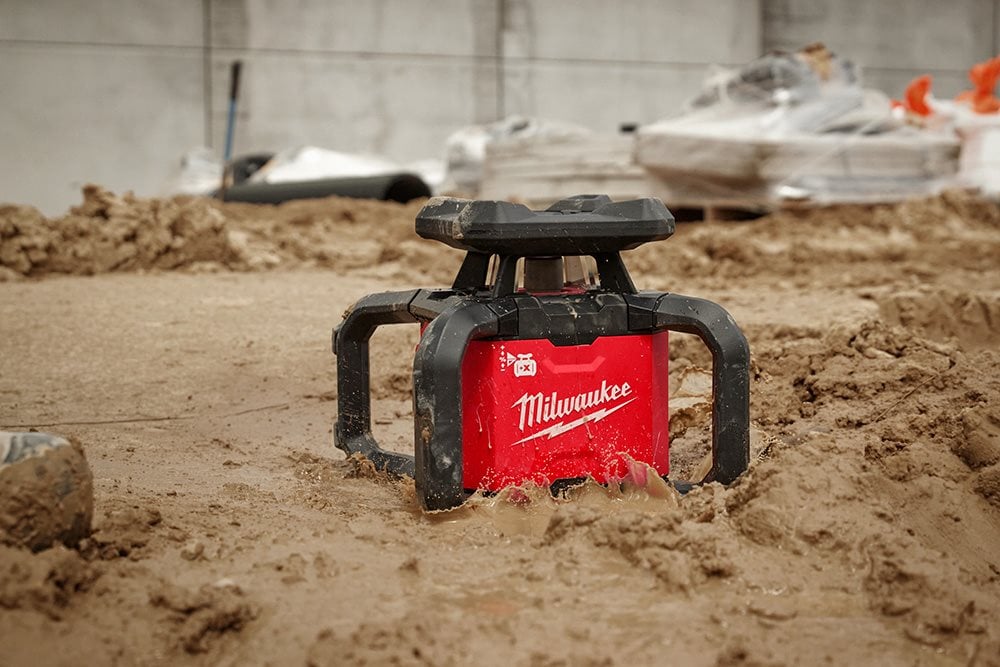

A durable rubber over-mould housing allows the laser to withstand 1.5 metre drops with an IP rating of 66. A bump alert with adjustable sensitivity notifies users when the laser has been bumped or moved. Built-in strobe protection reduces interference from other light sources on the jobsite for consistent and accurate measurements. The laser and included remote feature a simplified menu navigation and digital display for easy measurement readings.

The M18^™ 1200 m Rotary Laser is fast and accurate with an automatic dual grade match up to 12.5% in X & Y axis, and users can adjust the slope remotely with a duplicated remote display.

The M18™ 1200 m rotary laser has a simplified menu navigation with an intuitive user interface to deliver the fastest laser setup.

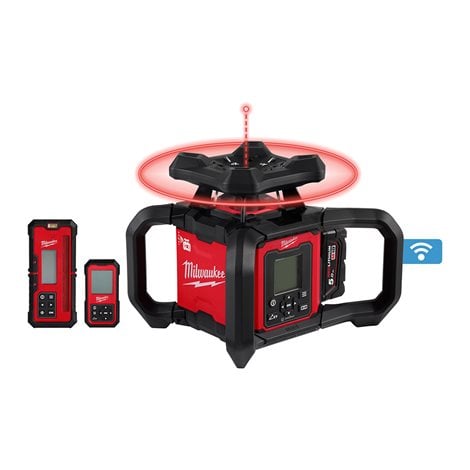

This rotary laser is accurate to 1.6 mm at 30 m ensuring precise measurements and the supplied remote, the Rotary Laser Detector RD1200 detects up to 1200 m (diameter) for accurate slopes and elevations. The RD1200 also features a duplicate display of the laser screen allowing users to set the laser remotely.

The M18^™ 1200 m rotary laser is the ultimate tool for grading applications, with an easy-to-read detector screen, a ±5° self-levelling range for a fast and accurate set up and a simplified menu navigation making for a more intuitive user interface.

MILWAUKEE^® is committed to improving productivity by providing performance-driven and trade-focused solutions so users can perform an entire day’s work on one battery system. The M18^™ 1200 m Horizontal Vertical Auto Dual Grade Rotary Laser with ONE-KEY^™ is fully compatible with the entire MILWAUKEE^®M18^™ line, now offering more than 290 power tool solutions.

Specifications

M18^™ 1200 m Horizontal Vertical Auto Dual Grade Rotary Laser with ONE-KEY™

M18 RLOHV1200-501C

Battery Type: Lithium-ion
Battery System: M18^™
Accuracy at 30 m Distance: 1.6 ± mm
Colour of Laser Line: Red
Compatible Laser Detector: RD1200, RD600, LRD100
IP Protection Class: 66
Laser Classification: Class 2
Laser Projection: 1 x 360°
Max Run Time: 70 h (with M18 B5)
Self-Levelling Range ±5°
Self-Levelling Time: 10 sec
Tripod Fitting: 5/8”
Weight with Battery Pack (EPTA): 4.1 kg (M18 B5)

Kit Includes: (1) M18^™ 1200 m Horizontal Vertical Auto Dual Grade Rotary Laser with ONE-KEY™, (1) M18 B5 Battery Pack, (1) M12-18 C Charger, (1) Kitbox

Also Available:

M18^™ Rotary Lasers

M18 RLOH600-201C - M18^™ 600 m Horizontal Rotary Laser with ONE-KEY^™
M18 RLOHVG300-501C - M18^™ 300 m Green Horizontal Vertical Rotary Laser with ONE-KEY^™
