NEW MX FUEL™ Backpack Concrete Vibrator Delivers Consistent Starts and the Most Reliable Pours

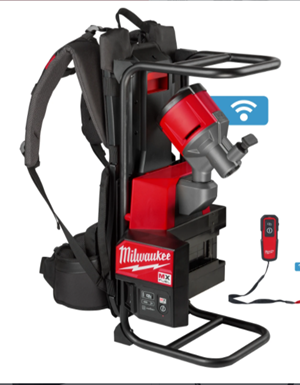

Part of the new MX FUEL^™ Equipment system*, the mx fUEL^™ Backpack Concrete Vibrator is the first modular concrete vibrator of its kind. Critical to the concrete consolidation process, the new backpack vibrator provides consistent starts and the most reliable pours with the power to push up to 63 mm head.

“It’s no secret that concrete vibrator solutions today are faced with multiple user frustrations, some of the biggest are centered around the problems of petrol equipment – the starting, emissions, noise, regular maintenance, and vibration for example,” said Manuel Schmidt, Product Manager for Milwaukee Tool. “By harnessing MX FUEL^™ technology, we can now deliver a concrete vibrator that is more consistent than petrol solutions and has the power to push up to 63 mm head and 40 m³ per charge**.”

The POWERSTATE^™ brushless motor delivers the power to push up to 63 mm heads at over 11,000 VPM for optimal concrete consolidation, even in the stiffest concrete applications. REDLINK PLUS^™ intelligence ensures optimal performance and provides overload protection to protect the concrete vibrator in the toughest applications, and the MX FUEL^™ REDLITHIUM^™ battery pack provides instant power.

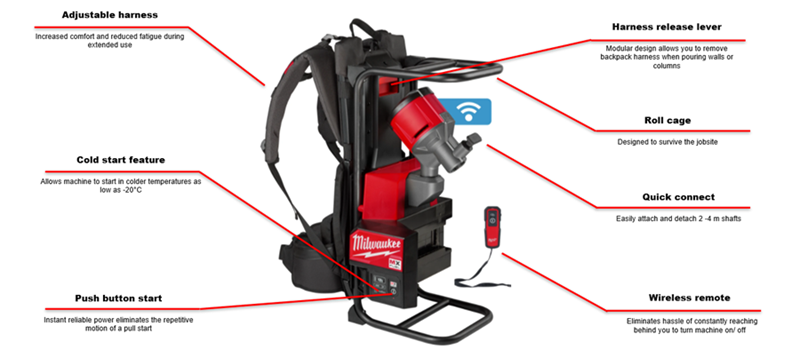

With a push button start, users can start the MX FUEL^™ Concrete Vibrator in seconds, getting up and running faster than ever before by eliminating the repetitive motions of priming, choking, and pull starting without sacrificing power or run time. In addition, the elimination of extension cords enhances user safety by removing the possibility of trip hazards or cords near standing water and also saves time due to quicker set up compared to AC competition. The modular design allows users to easily remove the backpack harness when working on walls and columns.

With up to 50% less noise and reduced vibration for increased user comfort, the battery powered equipment also eliminates emission concerns and is safe to use both indoors and outdoors compared to combustion engine driven competition.

As an added benefit, users can track, manage, and secure the vibrator from their mobile device through ONE-KEY^™***,  the industry’s first Bluetooth^®**** community tracking network. If the backpack vibrator is ever lost or stolen, ONE-KEY™ provides the ability to prevent tampering with remote lockout capability.

Milwaukee Tool will remain unwavering in their commitment to delivering disruptive innovation by working alongside trade professionals to identify challenges and provide solutions that are unparalleled in enhancing jobsite safety and productivity. The future of the jobsite is cordless.

Concrete Vibrator Accessories Too!

The MX FUEL^™ Concrete Vibrator accepts shafts up to 6.4 m long. The kit is complete with a wireless remote giving users the ability to run the machine from up to 9 m away, providing more freedom when using long shafts. Additionally, replacement backpack harnesses and remotes are available if needed.

*The MX FUEL^™ Equipment System: This groundbreaking cordless system revolutionises the light equipment market by delivering the performance, run time, and durability demanded by the trades without the hazards associated with emissions, noise, vibration, and the frustrations of petrol maintenance. Each of the solutions on the MX FUEL^™ system go beyond the limitations of petrol and power-cord units and operate off one completely compatible system all on the same battery. This is Equipment Redefined.

** When equipped with a MX FUEL^™ REDLITHIUM XC406 battery, 38 mm head, and 2m shaft

***ONE-KEY^™ is the first digital platform for tools and equipment. By integrating industry-leading tool electronics with a custom-built cloud-based program, ONE-KEY^™ provides a new level of control and access to information that revolutionises the way work gets done. The ability to customise, track, and manage through ONE-KEY^™ fundamentally changes the way users interact with their tools.

****The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc., and any use of

such marks by TTI is under licence. Other trademarks and trade names are those of their respective owners.

 Specifications

MX FUEL^™ Backpack Concrete Virator

(MXF CVBPKIT-602)

• Battery type: Lithium-ion
• Battery system: MX FUEL^™
• Maximum head size: 63 mm
• Maximum shaft length: 6.4 m
• Weight with battery pack: 15.7 kg
• Equipment warranty: 1+1 Years
• Battery warranty: 1+1 Years
• ONE-KEY^™ compatible: Track & Manage
• Quick connect: Easily attach & detach shafts
• Push button start: Yes
• Removeable harness: Yes
• Wireless remote included: Yes

Kit Includes (1) MX FUEL^™ Backpack Vibrator, (1) Remote control, (1) MX FUEL™ Charger, (2) MX FUEL™ REDLITHIUM™ XC406 Batteries, 1x MXF CVS-2 m Shaft,

1x MXF CVH-38 mm Vibrator head

Accessories

Vibrator shaft 2 m (4932478611)

Vibrator shaft 4 m (4932478610)

Vibrator head 38 mm (4932478612)

Vibrator head 50 mm (4932478613)
