M18 FMS305

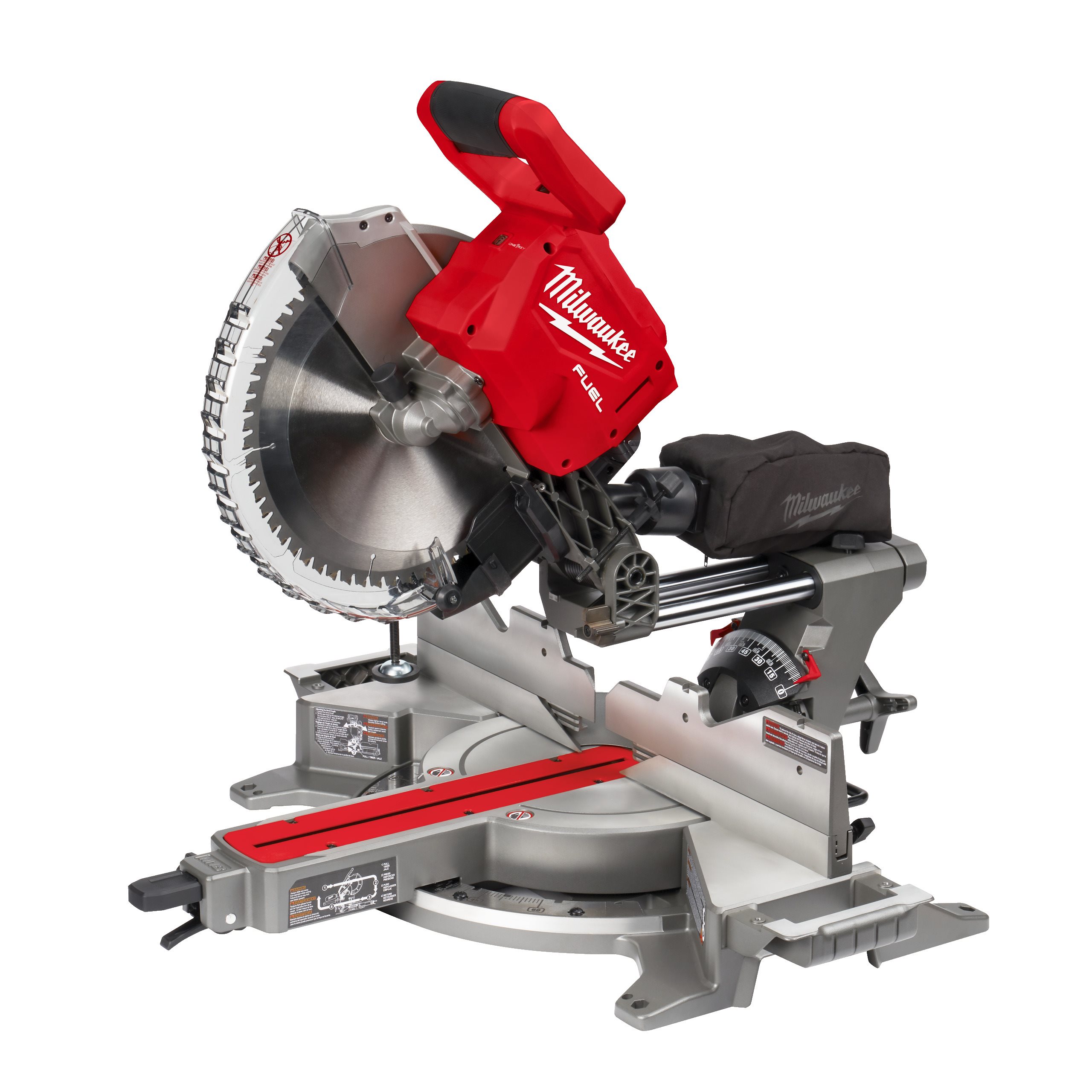

M18 FUEL™ ONE-KEY™ 305 mm mitre saw



Delivers the power to cut at the same rate of an equivalent AC 305 mm saw, with the ability to cut up to 500 pieces of 78 mm pine base board on one 12.0 Ah battery charge

The HIGH OUTPUT™ system of tools elevates the M18 FUEL™ technologies to a new level and delivers extended performance and extended run time. These tools are designed to maximise the partnership with HIGH OUTPUT™ batteries

Large sliding fences gives maximum support to the material being cut providing stability and accuracy

Trenching stop with depth adjustment allows the user to make trenching and rebate cuts

ONE-KEY™ tool tracking & security offers a free of charge cloud-based tracking network and inventory management platform for your tools. ONE-KEY™ also features a remote locking functionality

Integrated carry handle allows easy transportation on and off the jobsite

Steel detent plate with preset angles gives repeatable accurate cuts

LED light to illuminate the work piece and cut line in low light conditions


Select Model Variant

M18 FMS305-0

  • M18 FMS305-0

Where to buy

Find a store

Range Spec

Product Specifications M18 FMS305-0
M18 FMS305-0
Article Number 4933471205
Battery pack capacity (Ah) No batteries supplied
Battery type Li-ion
Bevel capacity (°) 48
Bevel capacity left (°) 48
Bevel capacity right (°) 48
Blade diameter (mm) 305
Bore size (mm) 30
Max. cutting capacity 45 mitre Left | 45 bevel Left [mm] 235 x 65
Max. cutting capacity 45 mitre Right | 45 bevel Right [mm] 235 x 40
Max. cutting capacity 45° mitre/ 90° bevel (mm) 235 x 97
Max. cutting capacity 90° mitre 90° bevel [mm] 343 x 97
Max. cutting capacity 90° mitre/45° bevel (mm) 343 x 65
Max. cutting capacity at fence 90 mitre|90 bevel [mm] 173 x 28
Mitre capacity (°) 55/ 60
Mitre capacity left (°) 55
Mitre capacity right (°) 60
No load speed (rpm) 3600
No. of batteries supplied 0
Standard equipment Blade, clamp, wrench, side handles and dust bag
Supplied in No kitbox or bag supplied
Voltage (V) 18
Weight with battery pack (EPTA) (kg) 22.5 (M18 HB12)
