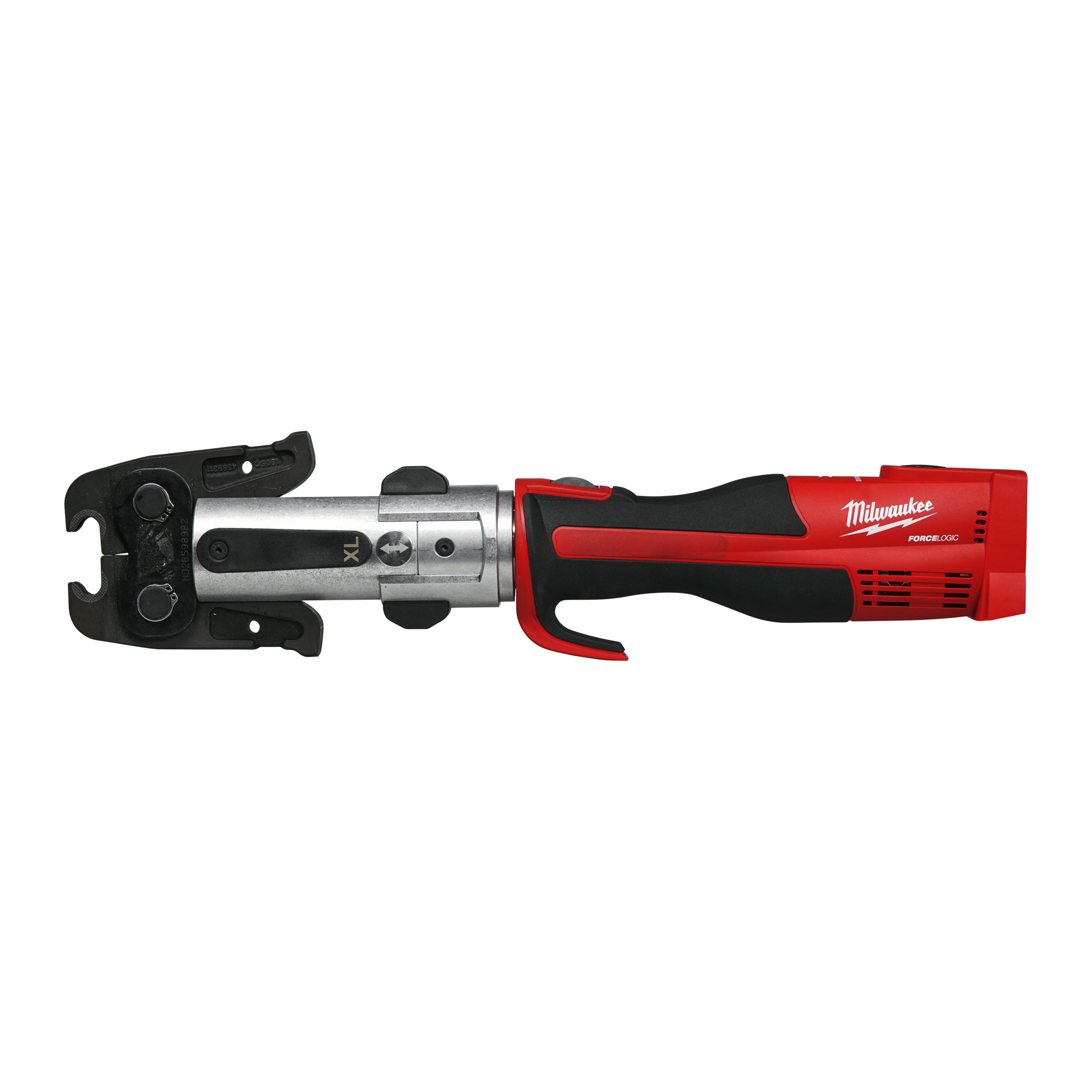

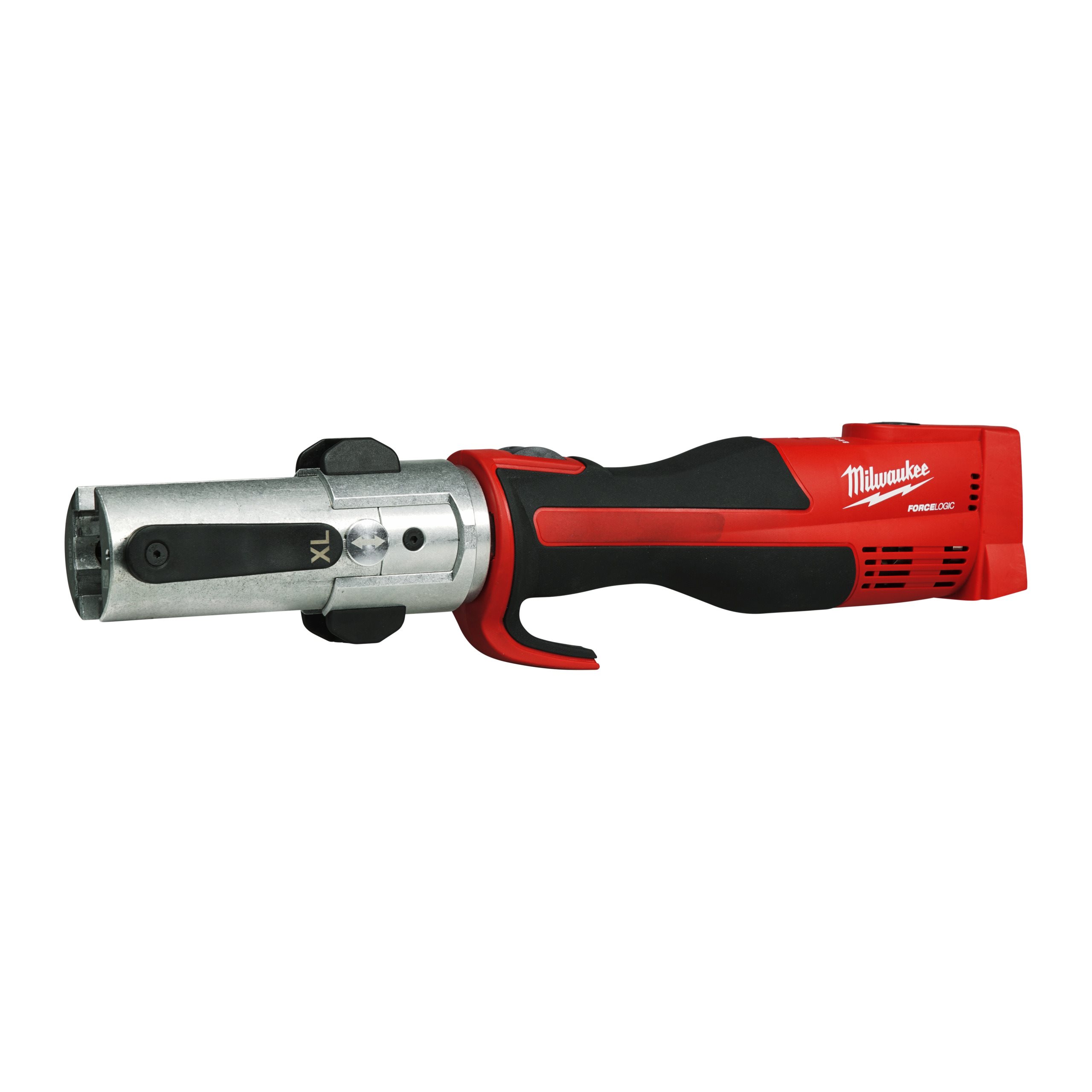

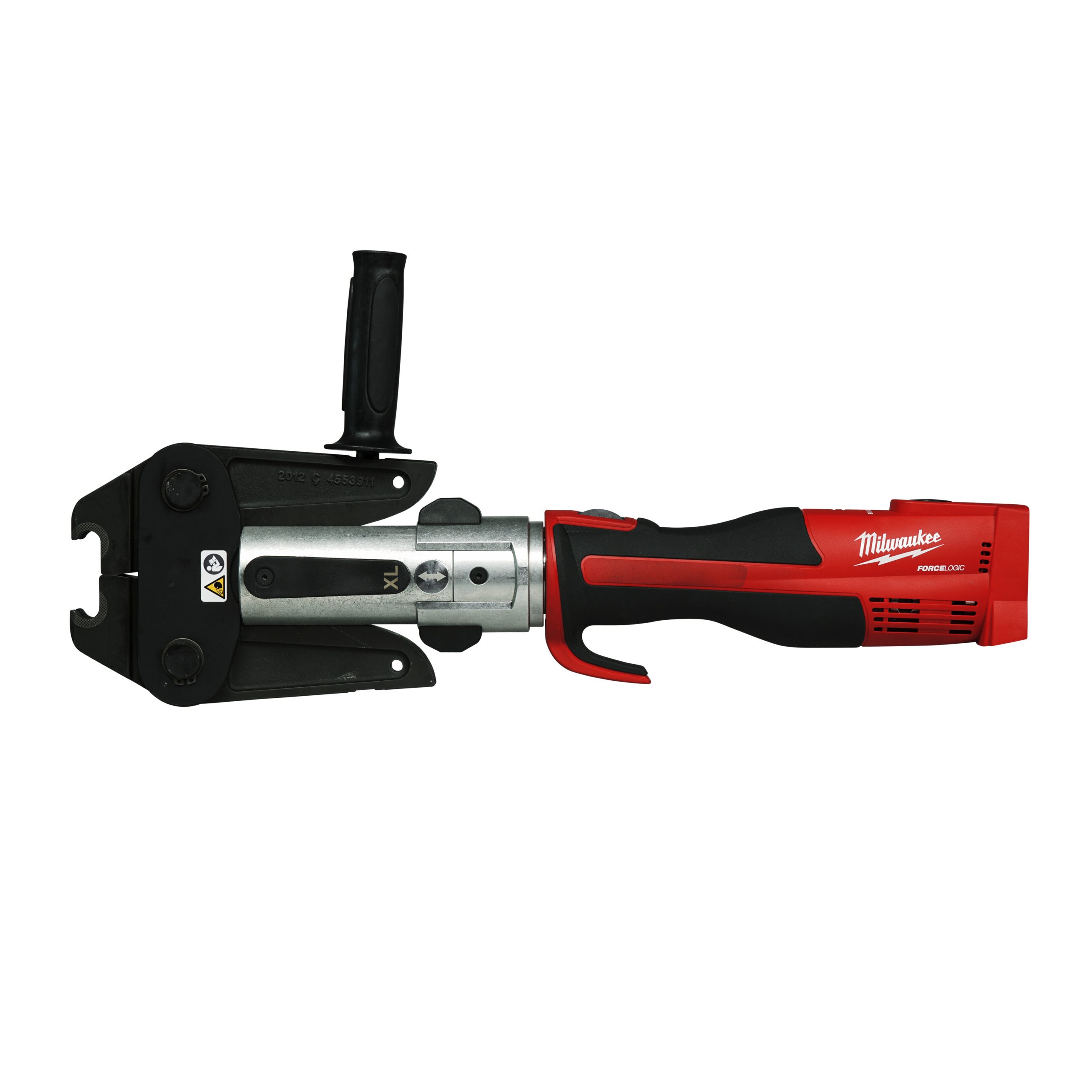

M18™ FORCE LOGIC™ brushless XL press tool

Leave a Review


New compact brushless motor in FORCE LOGIC™ press tools delivers up to 10% faster connections and 20% more run time

FORCE LOGIC™ press indicator: provides visual confirmation of a quality connection

Extended press range up to 108 mm in copper, C- steel & stainless steel & up to 4″ in steel pipe

One hand operated tool for over head applications and working in narrow spaces

Adjustable stroke length allows usage of all standard MILWAUKEE® J18 jaws + most common competitive jaws available on the market

FORCE LOGIC™ long life reliability: No press cycle limitation within the 3 year maintenance interval

Auto-cycle ensures a full press cycle is completed with every press connection

Battery-tool communication: press operation doesn't start to prevent incomplete pressing in case of low charged battery. Pre-press battery check ensures enough charge to complete each press


Brushless motor, REDLITHIUM™ battery pack and REDLINK™ electronic deliver power, run time and durability


Select Model Variant


  • M18 BLHPTXL-0P

Where to buy

Find a store


Product Specifications M18 BLHPTXL-0P
Article Number 4933479440
Battery type Li-ion
Max. press size in c_steel & stainless steel [mm] 108
Max. press size in composite [mm] 110
Max. press size in copper [mm] 108
Max. press size in steel [Inch] 102
Press force [kN] 32
Supplied in PACKOUT™ box
Voltage (V) 18
Weight with battery pack (EPTA) (kg) 3.9 (M18 B5)
Sound power level (Lwa)(dB(A)) 89.0
Sound power level uncertainty (dB(A)) 3
Sound pressure level (Lpa)(dB(A)) 78.0
Sound pressure level uncertainty (dB(A)) 3
Vibration level (m/s²) 2.5
Vibration uncertainty (m/s²) 1.5
